AUTO BAR SCREEN

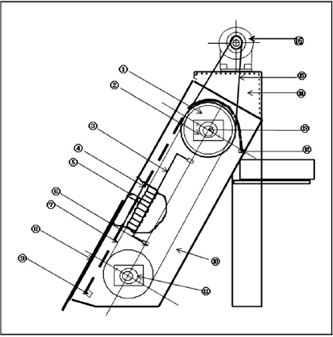

재질표 (Material index)

NO 구분 규격 재질 NO 구분 규격 재질
1 CHAIN GEAR RS#60   9 BAR BRACKER   STS 304
2 HEAD BEARING UCA 205   10 FRAME 1.5T STS 304
3 CHAIN RAIL   STS 304 11 UCFL BEARING   STS 304
4 ROUND BAR Φ6 STS 304 12 BAR BRACKET 　 STS 304
5 RAKE 20×45 STS 304 13 SHAFT Φ30 STS 304
6 STAY BAR   STS 304 14 MOTOR BASE   STS 304
7 MAIN CHAIN RS#60 STS 304 15 DRIVE CHAIN RS#40
8 RUBBER     16 GEARED MOTOR 0.4kw

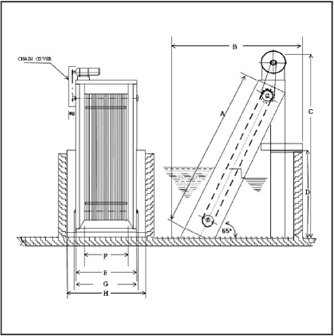

외형치수표 (Dimension) 　　　

[단위:mm]

MODEL A B C D E F G H 동력
HS-400L 920 950 1,050 380 400 270 465 500-600 0.4kw
HS-400H 1,140 1,050 1,250 540 400 270 465 500-600 0.4kw
HS-500L 920 950 1,050 380 500 350 570 700-800 0.4kw
HS-500H 1,140 1,050 1,250 540 500 350 570 700-800 0.4kw

용량 (Capacity) 　　

[단위:㎥Hr]

MODEL 간극 5mm 간극 10mm 간극 15mm MODEL 간극 5mm 간극 10mm 간극 15mm
HS-400L 30~40 50~60 60~80 HS-500L 60~140 70~160 80~180
HS-400H 40~50 50~60 70~120 HS-500H 70~170 80~170 90~190
